Spreading a load over two bodies with a flexible spider (RBE3)

Spreading a load over two bodies with a flexible spider (RBE3)#

Author Jørgen S. Dokken

License MIT

A spider joins a single point, its body, to any number of nodes, its feet (see FE Training on spiders). In the flexible variant, known as RBE3 in most finite element codes, the body follows its feet: its motion is the rigid motion that best fits theirs, in the weighted least-squares sense,

\[ \min_{t, \theta} \sum_i w_i \lvert u_i - t - \theta \times (x_i - x_c) \rvert^2, \]

where \(x_c\) is the body, \(t\) its translation, \(\theta\) its rotation, and \(u_i\) the displacement of foot \(i\) at \(x_i\), with weight \(w_i\). Writing \(B_i\) for the map from \((t, \theta)\) to the rigid motion at foot \(i\), and \(A = \sum_i w_i B_i^T B_i\), this gives

\[ (t, \theta) = A^{-1} \sum_i w_i B_i^T u_i. \]

The unknowns of the body are the slaves, and every component of every foot is one of their masters. Unlike the rigid spider (RBE2, see Joining two bodies with a rigid spider (RBE2)), an RBE3 spider adds no stiffness: the feet move freely, and a load on the body is spread over them.

This demo applies a force and a moment to a spider between two separately meshed elastic cubes, one of tetrahedra and one of hexahedra, each clamped at its far end. The spider’s feet are the nodes on the facing sides of both cubes.

from pathlib import Path

from mpi4py import MPI
from petsc4py import PETSc

import basix.ufl
import numpy as np
import pyvista
import ufl
from dolfinx import default_real_type, default_scalar_type, fem, la, mesh, plot

import dolfinx_mpc

The two cubes and the spider#

The tetrahedral cube occupies \([0, 1]^3\), the hexahedral one \([1.2, 2.2] \times [0, 1]^2\). The spider sits in the gap between them.

comm = MPI.COMM_WORLD
N = 6
cube_tet = mesh.create_box(
    comm, [[0.0, 0.0, 0.0], [1.0, 1.0, 1.0]], [N, N, N], mesh.CellType.tetrahedron, dtype=default_real_type
)
cube_hex = mesh.create_box(
    comm, [[1.2, 0.0, 0.0], [2.2, 1.0, 1.0]], [N, N, N], mesh.CellType.hexahedron, dtype=default_real_type
)
V_tet = fem.functionspace(cube_tet, ("Lagrange", 1, (3,)))
V_hex = fem.functionspace(cube_hex, ("Lagrange", 1, (3,)))

The body of the spider is a point of a mesh made by create_spider_mesh, as in Joining two bodies with a rigid spider (RBE2). The space on it has six components: the translation \(t\) and the rotation \(\theta\).

x_c = np.array([1.1, 0.5, 0.5], dtype=default_real_type)
spiders = dolfinx_mpc.create_spider_mesh(comm, x_c.reshape(1, 3) if comm.rank == 0 else np.zeros((0, 3)))
W = fem.functionspace(spiders, basix.ufl.element("DG", "point", 0, shape=(6,), dtype=default_real_type))

The constraint#

The slaves are the spider’s dofs, so the constraint is on the space of the spider, and each call names the space of the feet: add_rbe3_geometrical and add_rbe3_topological. All feet have weight one here; a weight per foot can be given as a number or a function of the coordinates. The constraint is built when it is finalized together with the constraints of the cubes, which have none of their own but hold its masters.

tol = 1e3 * np.finfo(default_real_type).eps
facets = mesh.locate_entities_boundary(cube_hex, 2, lambda x: np.isclose(x[0], 1.2, atol=tol))
mpc_tet = dolfinx_mpc.MultiPointConstraint(V_tet, dtype=default_scalar_type)
mpc_hex = dolfinx_mpc.MultiPointConstraint(V_hex, dtype=default_scalar_type)
mpc_body = dolfinx_mpc.MultiPointConstraint(W, dtype=default_scalar_type)
mpc_body.add_rbe3_geometrical(V_tet, lambda x: np.isclose(x[0], 1.0, atol=tol))
mpc_body.add_rbe3_topological(V_hex, 2, facets)
mpcs = [mpc_tet, mpc_hex, mpc_body]
dolfinx_mpc.finalize_multipointconstraints(mpcs)

Linear elasticity on each cube, and a load on the spider#

A force \(F\) does work on the translation of the spider and a moment \(M\) on its rotation, so the load is the linear form \(F \cdot w_t + M \cdot w_\theta\) on the space of the spider. On a point mesh, ufl.dx evaluates its integrand at the point. Both cubes are clamped at their far ends.

E, nu = 1.0e3, 0.3
mu, lmbda = E / (2 * (1 + nu)), E * nu / ((1 + nu) * (1 - 2 * nu))


def sigma(u):
    return 2 * mu * ufl.sym(ufl.grad(u)) + lmbda * ufl.tr(ufl.sym(ufl.grad(u))) * ufl.Identity(3)


def elasticity(V):
    u, v = ufl.TrialFunction(V), ufl.TestFunction(V)
    return ufl.inner(sigma(u), ufl.sym(ufl.grad(v))) * ufl.dx


force = np.array([0.0, 0.2, -1.0])
moment = np.array([0.0, 0.3, 0.1])
spider_load = fem.Constant(spiders, np.concatenate([force, moment]).astype(default_scalar_type))

a = [[elasticity(V_tet), None, None], [None, elasticity(V_hex), None], [None, None, None]]
L = [
    ufl.ZeroBaseForm((ufl.TestFunction(V_tet),)),
    ufl.ZeroBaseForm((ufl.TestFunction(V_hex),)),
    ufl.inner(spider_load, ufl.TestFunction(W)) * ufl.dx(spiders),
]

clamped_tet = fem.locate_dofs_geometrical(V_tet, lambda x: np.isclose(x[0], 0.0, atol=tol))
clamped_hex = fem.locate_dofs_geometrical(V_hex, lambda x: np.isclose(x[0], 2.2, atol=tol))
zero = np.zeros(3, dtype=default_scalar_type)
bcs = [fem.dirichletbc(zero, clamped_tet, V_tet), fem.dirichletbc(zero, clamped_hex, V_hex)]
petsc_options = {
    "ksp_type": "preonly",
    "pc_type": "lu",
    "pc_factor_mat_solver_type": "mumps",
    "ksp_error_if_not_converged": True,
}

Solve#

The blocks are assembled into one matrix and solved directly.

problem = dolfinx_mpc.LinearProblem(
    a, L, mpcs, bcs=bcs, kind="mpi", petsc_options_prefix="demo_rbe3_", petsc_options=petsc_options
)
u_tet, u_hex, spider = problem.solve()

Checks#

The spider moves with the least-squares rigid fit of its feet. The feet of both cubes are gathered to compute the fit independently.

feet_tet = fem.locate_dofs_geometrical(V_tet, lambda x: np.isclose(x[0], 1.0, atol=tol))
feet_hex = fem.locate_dofs_geometrical(V_hex, lambda x: np.isclose(x[0], 1.2, atol=tol))


def rigid_map(r):
    """B with B @ [t, theta] = t + theta x r."""
    return np.hstack([np.eye(3), [[0, r[2], -r[1]], [-r[2], 0, r[0]], [r[1], -r[0], 0]]])


def rigid_fit(u_feet, x_c):
    """Least-squares rigid motion (t, theta) of the feet about x_c, and the largest misfit."""
    pieces = []
    for V, u, feet in zip((V_tet, V_hex), u_feet, (feet_tet, feet_hex)):
        owned = feet[feet < V.dofmap.index_map.size_local]
        pieces.extend(comm.allgather((V.tabulate_dof_coordinates()[owned], u.x.array.reshape(-1, 3)[owned])))
    x = np.vstack([p[0] for p in pieces])
    u = np.vstack([p[1] for p in pieces])
    B = np.vstack([rigid_map(x_i - x_c) for x_i in x])
    fit = np.linalg.lstsq(B, u.reshape(-1), rcond=None)[0]
    return fit, np.abs(B @ fit - u.reshape(-1)).max()


fit, misfit = rigid_fit((u_tet, u_hex), x_c)
values = dolfinx_mpc.spider_values(spider, 0)
atol = 1e4 * np.finfo(default_real_type).eps
assert np.allclose(values, fit, atol=atol)

The load reaches the clamps: their reactions balance the force, and the moment of the load about the spider. A reaction is the residual of a cube’s equations at its clamped dofs, evaluated with the solution.

def clamp_reaction(V, u, clamped):
    """Force and moment about `x_c` that a clamp exerts on its cube."""
    u_ref = fem.Function(V, dtype=default_scalar_type)
    n_owned = V.dofmap.index_map.size_local * 3
    u_ref.x.array[:n_owned] = u.x.array[:n_owned]
    u_ref.x.scatter_forward()
    residual = fem.assemble_vector(fem.form(ufl.action(elasticity(V), u_ref), dtype=default_scalar_type))
    residual.scatter_reverse(la.InsertMode.add)
    owned = clamped[clamped < V.dofmap.index_map.size_local]
    f = residual.array.reshape(-1, 3)[owned]
    r = V.tabulate_dof_coordinates()[owned] - x_c
    return comm.allreduce(f.sum(axis=0), op=MPI.SUM), comm.allreduce(np.cross(r, f).sum(axis=0), op=MPI.SUM)


reactions = [clamp_reaction(V_tet, u_tet, clamped_tet), clamp_reaction(V_hex, u_hex, clamped_hex)]
reaction_force = sum(r[0] for r in reactions)
reaction_moment = sum(r[1] for r in reactions)
if comm.rank == 0:
    print(f"RBE3 spider: t = {values[:3]}, theta = {values[3:]}")
    print(f"Reaction force {reaction_force} (tetrahedra {reactions[0][0]}, hexahedra {reactions[1][0]})")
    print(f"Reaction moment about the spider {reaction_moment}, applied {moment}")
assert np.allclose(reaction_force, -force, atol=100 * atol)
assert np.allclose(reaction_moment, -moment, atol=100 * atol)

RBE3 spider: t = [-6.53399918e-06  6.81184873e-04 -3.22906807e-03], theta = [1.45150005e-05 8.33146653e-04 3.18693140e-04]
Reaction force [ 4.09741685e-15 -2.00000000e-01  1.00000000e+00] (tetrahedra [ 2.57432964e-15 -5.87155963e-02  3.76146789e-01], hexahedra [ 1.52308721e-15 -1.41284404e-01  6.23853211e-01])
Reaction moment about the spider [ 3.68195058e-16 -3.00000000e-01 -1.00000000e-01], applied [0.  0.3 0.1]

Compared with a rigid spider#

The same load through an RBE2 spider ties the feet to the spider’s rigid motion, so the facing sides stay plane. With RBE3 they deform: the feet are off the rigid fit. Making the sides rigid can only stiffen the structure, so the work of the load, \(F \cdot t + M \cdot \theta\), is smaller for RBE2.

mpc_tet2 = dolfinx_mpc.MultiPointConstraint(V_tet, dtype=default_scalar_type)
mpc_tet2.add_rbe2_geometrical(lambda x: np.isclose(x[0], 1.0, atol=tol), W)
mpc_hex2 = dolfinx_mpc.MultiPointConstraint(V_hex, dtype=default_scalar_type)
mpc_hex2.add_rbe2_topological(2, facets, W)
mpcs2 = [mpc_tet2, mpc_hex2, dolfinx_mpc.MultiPointConstraint(W, dtype=default_scalar_type)]
dolfinx_mpc.finalize_multipointconstraints(mpcs2)
problem2 = dolfinx_mpc.LinearProblem(
    a, L, mpcs2, bcs=bcs, kind="mpi", petsc_options_prefix="demo_rbe3_rigid_", petsc_options=petsc_options
)
u_tet2, u_hex2, spider2 = problem2.solve()
fit2, misfit2 = rigid_fit((u_tet2, u_hex2), x_c)
values2 = dolfinx_mpc.spider_values(spider2, 0)
load = np.concatenate([force, moment])
if comm.rank == 0:
    print(f"Feet off the rigid fit: {misfit:.2e} (RBE3), {misfit2:.2e} (RBE2)")
    print(f"Work of the load: {load @ values:.4e} (RBE3), {load @ values2:.4e} (RBE2)")
assert misfit2 < atol < misfit
assert load @ values2 < load @ values

Feet off the rigid fit: 2.04e-03 (RBE3), 1.09e-17 (RBE2)
Work of the load: 3.6471e-03 (RBE3), 2.1694e-03 (RBE2)

Following the motion of the spider#

As for the rigid spider, the relation is linear in the rotation and holds about the current positions. Under a larger load we apply it in increments, each about the configuration reached by the previous ones: solve for the displacement increment, move both cubes and the spider by it, and recompute the coefficients about the new positions with update_rbe3. The feet are masters for every configuration, so the matrix layout is reused.

dolfinx_mpc.spider.move() moves a mesh by a displacement, through the space of its coordinate element, whose dofs in each cell are the cell’s geometry nodes. Given the increment on the spider space, it moves each spider by its translation.

num_steps = 10
spider_load.value[:] = np.concatenate([[0.0, 0.0, -8.0], [0.0, -1.0, 0.0]])
u_total = [
    np.zeros((V.dofmap.index_map.size_local + V.dofmap.index_map.num_ghosts, 3), dtype=default_scalar_type)
    for V in (V_tet, V_hex)
]
x_spider = x_c.copy()
frames = []

Each process draws the cells it owns and the legs of the spider to the feet it owns; the pieces are gathered on one process, see Plotting in parallel.

pyvista.global_theme.allow_empty_mesh = True


def pieces(x_spider):
    """The cubes, coloured by the total displacement, and the legs of the spider."""
    grids = []
    for V, u in ((V_tet, u_total[0]), (V_hex, u_total[1])):
        owned = np.arange(V.mesh.topology.index_map(3).size_local, dtype=np.int32)
        grid = pyvista.UnstructuredGrid(*plot.vtk_mesh(V, entities=owned))
        grid["|u|"] = np.linalg.norm(u[: grid.n_points], axis=1)
        grids.append(grid)
    feet = np.vstack(
        [
            V.tabulate_dof_coordinates()[f[f < V.dofmap.index_map.size_local]]
            for V, f in ((V_tet, feet_tet), (V_hex, feet_hex))
        ]
    )
    legs = pyvista.PolyData(np.vstack([x_spider, feet]))
    num_feet = len(feet)
    legs.lines = np.column_stack(
        [np.full(num_feet, 2), np.zeros(num_feet, dtype=np.int64), 1 + np.arange(num_feet)]
    ).reshape(-1)
    return grids, legs


for step in range(num_steps + 1):
    if step > 0:
        du_tet, du_hex, du_spider = problem.solve()
        # The spider follows the fit of its feet about the configuration of the increment
        fit, _ = rigid_fit((du_tet, du_hex), x_spider)
        values = dolfinx_mpc.spider_values(du_spider, 0)
        assert np.allclose(values, fit, atol=atol), f"Spider off the fit of its feet at step {step}"
        for domain, du, total in ((cube_tet, du_tet, u_total[0]), (cube_hex, du_hex, u_total[1])):
            dolfinx_mpc.spider.move(domain, du)
            total += du.x.array.reshape(-1, 3)[: len(total)]
        dolfinx_mpc.spider.move(spiders, du_spider)
        x_spider += values[:3].real
        mpc_body.update_rbe3()
    # Collective: every process gathers, only the root draws
    frame = comm.gather(pieces(x_spider), root=0)
    if comm.rank == 0:
        frames.append(frame)

if comm.rank == 0:
    print(f"Spider after {num_steps} increments: {x_spider}, moved by {x_spider - x_c}")
assert x_spider[2] < x_c[2] - 0.05

Spider after 10 increments: [1.10162287 0.50220013 0.24167651], moved by [ 0.00162287  0.00220013 -0.25832349]

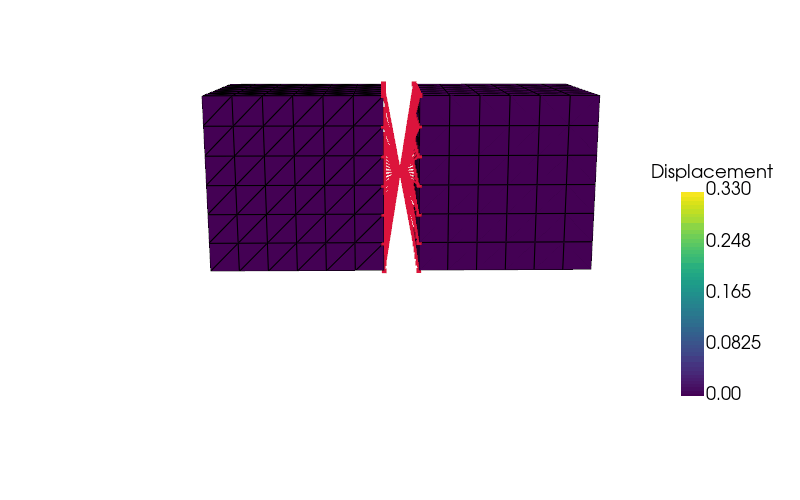

The facing sides bend under the spider, which follows their average motion.

The PETSc objects of the problems are freed, and those the garbage collector has released are cleaned up on every process together.

del problem, problem2
PETSc.garbage_cleanup(comm)
