Motivation

The first goal of the workshop is to approximate

\[ g(x) = x \sin(\pi x) \cos (3\pi x) \]

on the interval \([0, 1]\).

We want to start with a simple example to illustrate the basic idea behind the finite element method, which is sub-dividing the domain of interest \(\Omega\) into smaller sub-domains, called elements, and on each element represent a function \(u_h\) by a linear combination of simple basis functions, e.g. polynomials.

Certain problems can be solved analytically, but only for specific boundary conditions, material properties, and geometries.

Selection of approximation functions

There are many different choices we could choose for approximating \(g\):

1. Global polynomial approximation (e.g. piecewise linear, quadratic, cubic, etc.)

2. Finite Fourier series

3. Piecewise polynomial approximation (e.g. Taylor series)

When solving PDEs, we will encounter singularities and non-smooth solutions (e.g. kinks). Both these features make global polynomial approximation and Fourier series less attractive.

Show code cell source

Hide code cell source

import sys, os

from mpi4py import MPI

import numpy as np
import pyvista
import scipy.sparse

import dolfinx
import ufl

if sys.platform == "linux" and (os.getenv("CI") or pyvista.OFF_SCREEN):
    pyvista.start_xvfb(0.05)


def approximate_function(N: int, degree: int):
    mesh = dolfinx.mesh.create_unit_interval(MPI.COMM_WORLD, N)

    def g(x):
        return x[0] + np.sin(np.pi * x[0]) * np.cos(3 * np.pi * x[0])

    V = dolfinx.fem.functionspace(mesh, ("Lagrange", degree))
    u = dolfinx.fem.Function(V)
    u.interpolate(g)

    # Warp solution function and smoothen for higher order polynomial
    pv_grid = pyvista.UnstructuredGrid(*dolfinx.plot.vtk_mesh(V))
    pv_grid.point_data["u"] = u.x.array
    warped = pv_grid.warp_by_scalar("u", normal=[0, 1, 0])
    warped_tessellate = warped.tessellate()

    # Compute reference solution
    x_ref = np.linspace(0, 1, 1000)
    g_ref = g(x_ref.reshape(1, -1))

    # warp grid nodes to match the solution
    lin_V = dolfinx.fem.functionspace(mesh, ("Lagrange", 1))
    lin_u = dolfinx.fem.Function(lin_V)
    lin_u.interpolate(u)
    lin_grid = pyvista.UnstructuredGrid(*dolfinx.plot.vtk_mesh(lin_V))
    lin_grid.point_data["u"] = lin_u.x.array
    lin_warped = lin_grid.warp_by_scalar("u", normal=[0, 1, 0])
    pyvista.set_jupyter_backend("static")
    plotter = pyvista.Plotter()
    plotter.add_lines(
        np.vstack([x_ref, g_ref, np.zeros_like(x_ref)]).T, connected=True, color="red", label="Exact", width=3
    )
    plotter.add_mesh(warped_tessellate, color="b", style="wireframe", label="Approximation", line_width=3)
    plotter.add_mesh(lin_warped, color="b", style="points", point_size=10)
    plotter.view_xy()
    plotter.add_legend(face="triangle")
    plotter.show()
    pyvista.set_jupyter_backend("html")

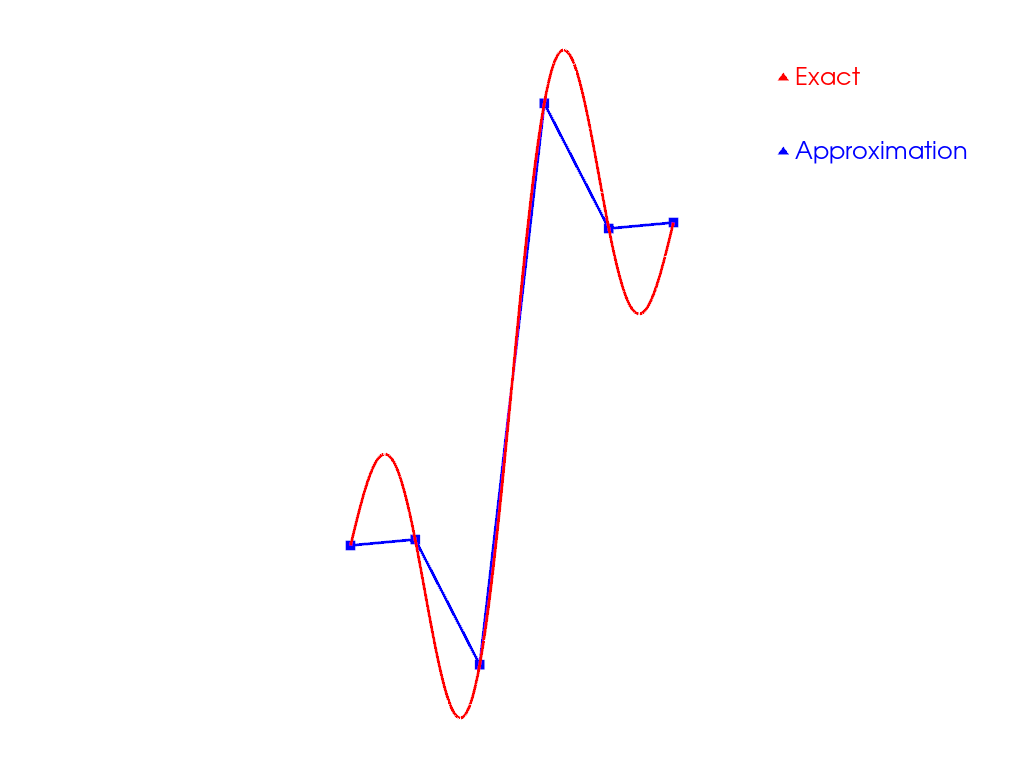

approximate_function(5, 1)

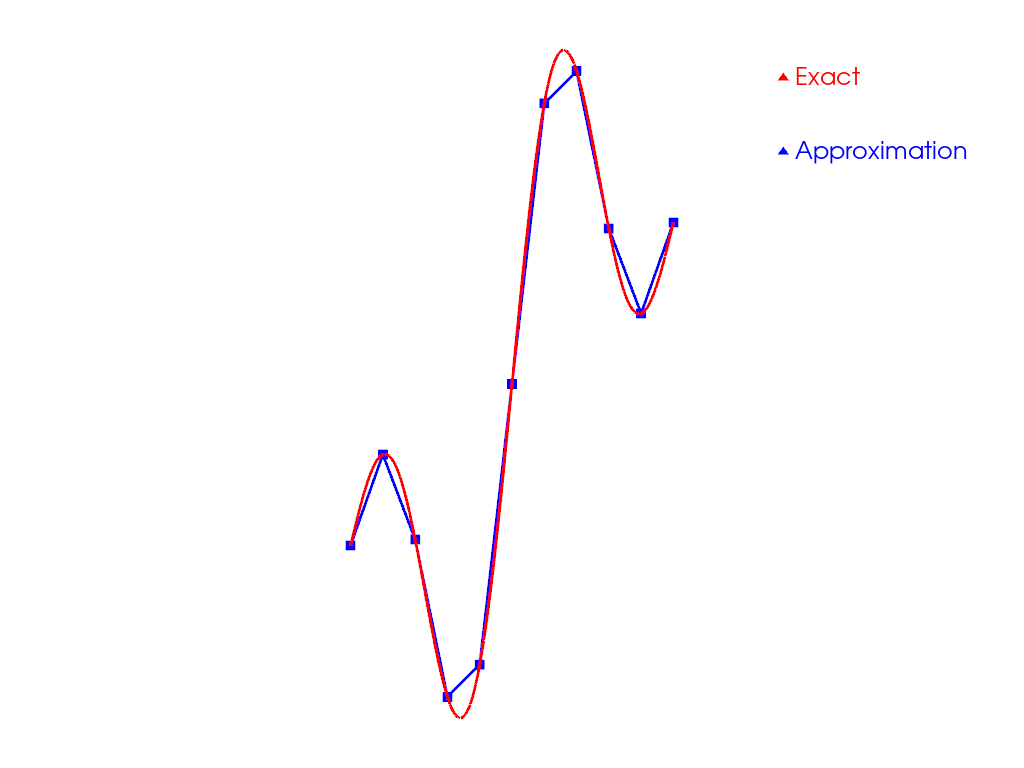

We could then increase the number of elements used

Show code cell source

Hide code cell source

approximate_function(10, 1)

Motivating example: Heat equation with different materials

This can for instance be seen in heat transfer equation between different materials. We define a domain \(\Omega\in \mathbb{R}^d\) as the union of two disjoint domains \(\Omega_0\) and \(\Omega_1\)

\[\begin{split} \begin{align*} \Omega_0\cup\Omega_1&=\Omega,\\ \Omega_0\cap\Omega_1&=\Gamma\subset{R}^{d-1}. \end{align*} \end{split}\]

Material

\(c\) is the coefficient of thermal diffusivity

\[\begin{split} c(x)=\begin{cases} c_0 & \text{if } x\in\Omega_0,\\ c_1 & \text{if } x\in\Omega_1, \end{cases} \end{split}\]

which is discontinuous at \(\Gamma\), while the governing partial differential equation yields

Show code cell source

Hide code cell source

# Define domain

mesh = dolfinx.mesh.create_unit_square(MPI.COMM_WORLD, 100, 100, cell_type=dolfinx.mesh.CellType.quadrilateral)
Q = dolfinx.fem.functionspace(mesh, ("DG", 0))
c = dolfinx.fem.Function(Q)
c.x.array[:] = 0.1
cells_left = dolfinx.mesh.locate_entities(mesh, mesh.topology.dim, lambda x: x[0] <= 0.7 + 1e-12)
c.x.array[cells_left] = 0.01
c.x.scatter_forward()

c_plotter = pyvista.Plotter()
c_mesh = pyvista.UnstructuredGrid(*dolfinx.plot.vtk_mesh(mesh))
c_mesh.cell_data["c"] = c.x.array
c_plotter.add_mesh(c_mesh)
c_plotter.show()

\[\begin{split} \begin{align*} \frac{\partial T}{\partial t}-\nabla \cdot(c \nabla ) T &= f \quad \text{in} \quad \Omega \\ u &= g \quad \text{on} \quad \partial \Omega \\ \left(c \nabla T \cdot n\right) \vert_{\Omega_1} &=\left( c \nabla T \cdot n\right) \vert_{\Omega_0} \quad \text{on} \quad \Gamma. \end{align*} \end{split}\]

Show code cell source

Hide code cell source

# An illustration of such a problem can be found below

# Define function space, test and trial functions

V = dolfinx.fem.functionspace(mesh, ("Lagrange", 1))
T = ufl.TrialFunction(V)
v = ufl.TestFunction(V)

# Define previous time step solution/initial condition

T_n = dolfinx.fem.Function(V)
T_n.interpolate(lambda x: np.sin(np.pi * x[0]) * np.sin(np.pi * x[1]))

# Define time stepping and problem specific data
dt = dolfinx.fem.Constant(mesh, dolfinx.default_scalar_type(0.01))
g = dolfinx.fem.Function(V)
g.x.array[:] = 0
f = dolfinx.fem.Function(V)
f.x.array[:] = 0


# Define boundary conditions
mesh.topology.create_connectivity(mesh.topology.dim - 1, mesh.topology.dim)
boundary_facets = dolfinx.mesh.exterior_facet_indices(mesh.topology)
boundary_dofs = dolfinx.fem.locate_dofs_topological(V, mesh.topology.dim - 1, boundary_facets)
bcs = [dolfinx.fem.dirichletbc(g, boundary_dofs)]

# Define variational problem
F = (
    ufl.inner(T - T_n, v) * ufl.dx
    + dt * c * ufl.inner(ufl.grad(T), ufl.grad(v)) * ufl.dx
    - dt * ufl.inner(f, v) * ufl.dx
)
a, L = dolfinx.fem.form(ufl.system(F))

# Define linear algebra structures
A = dolfinx.fem.create_matrix(a)
b = dolfinx.fem.create_vector(L)


t = 0
T_end = 0.1
Th = dolfinx.fem.Function(V)
Th.x.array[:] = T_n.x.array

# Assemble LHS matrix and invert once with scipy
A.data[:] = 0
dolfinx.fem.assemble_matrix(A, a, bcs=bcs)
A_scipy = A.to_scipy()
Ainv = scipy.sparse.linalg.splu(A_scipy)

while t < T_end:
    t += float(dt)

    # Assemble RHS vector and apply bcs through lifting
    b.array[:] = 0
    dolfinx.fem.assemble_vector(b.array, L)
    dolfinx.fem.apply_lifting(b.array, [a], [bcs])
    [bc.set(b.array) for bc in bcs]

    # Solve linear system
    Th.x.array[:] = Ainv.solve(b.array)
    T_n.x.array[:] = Th.x.array


plotter = pyvista.Plotter()
mesh_pyvista = pyvista.UnstructuredGrid(*dolfinx.plot.vtk_mesh(V))
mesh_pyvista.point_data["T"] = Th.x.array
warped_grid = mesh_pyvista.warp_by_scalar("T")
plotter.add_mesh(warped_grid, show_edges=True, edge_color="black")
if pyvista.OFF_SCREEN:
    plotter.screenshot("heat_transfer.png")
else:
    plotter.show()
