# Mixed finite element problems#

As indicated earlier, the finite element method can be used for PDEs that consist of multiple physical quantities. In this section, we will consider the Stokes problem, which can be formulated as

where \(\mathbf{u}\) is the velocity field, \(p\) is the pressure field, and \(\mathbf{f}\) is a given source term.

Symmetric variational form

We prefer problems that have a symmetric structure. For this reason, we introduce \(\hat p=-p\) and rewrite the problem as

With this re-formulation, we can create the variational form by introducing a pair of test-functions, \(\mathbf{v}\in V\) \(p \in Q\) multiply each equation by the corresponding test-function, and integrate over the domain.

We integrate the first equation by parts to obtain

The boundary term

From integration by parts, we obtain a boundary term that depends on the normal derivative of the velocity field.
Thankfully, we use the **natural** boundary condition for the Stokes problem, whereever we do not have a Dirichlet boundary condition
on the velocity.
In other words, we apply the following conditions on the boundary \(\partial \Omega = \partial\Omega_D\cup\Gamma\), where \(\partial\Omega_D\)
and \(\Gamma\) are two disjoint sets of the boundary.

This reduces the system to

We start by setting up this variational formulation for a unit square domain \(\Omega = [0,1]\times[0,1]\).

```
from mpi4py import MPI
import dolfinx
import basix.ufl
import ufl
import numpy as np
M = 6
mesh = dolfinx.mesh.create_unit_square(MPI.COMM_WORLD, M, M)
```

## Finite elements and mixed function space#

Next, we define the finite element spaces we would like to use for the velocity and pressure fields.
We do this as descibed in Introduction to the Unified Form Language and use `basix.ufl.mixed_element`

to create a mixed element for the velocity and pressure fields.
We choose the Taylor-Hood finite element pair for this problem.

```
el_u = basix.ufl.element("Lagrange", mesh.basix_cell(), 3, shape=(mesh.geometry.dim,))
el_p = basix.ufl.element("Lagrange", mesh.basix_cell(), 2)
el_mixed = basix.ufl.mixed_element([el_u, el_p])
```

## Test and trial functions in mixed spaces#

We can now define our mixed function space and the corresponding test and trial functions

```
W = dolfinx.fem.functionspace(mesh, el_mixed)
u, p = ufl.TrialFunctions(W)
v, q = ufl.TestFunctions(W)
```

Test and trial functions in mixed spaces

We observe that we use `ufl.TrialFunctions`

and `ufl.TestFunctions`

to define the trial and test functions for the mixed space,
rather than `ufl.TestFunction`

and `ufl.TrialFunction`

.
We could use the latter, but would then either have to index the corresponding functions or use `ufl.split`

to extract the components.

To see alternative approach for defining the test and trial functions expand the below cell

## Show code cell source

```
w = ufl.TrialFunction(W)
u, p = ufl.split(w)
u = ufl.as_vector([w[0], w[1]])
p = w[2]
```

## Functions#

Next we define a function in `wh`

in `W`

to represent the solution.

```
wh = dolfinx.fem.Function(W)
```

We can split this function into symbolic components for the velocity and pressure fields with `ufl.split`

```
uh, ph = ufl.split(wh)
```

## Boundary integrals#

So far, we have only considered the integrals over the domain \(\Omega\). We also need to consider the integrals over the boundary.
We do this by introducing the exterior facet measure, called `ds`

in UFL.
This measure will only consist of facet integrals over those facets that are connected to a signle cell.

```
ds = ufl.Measure("ds", domain=mesh)
```

We create a function `g`

to represent any any potential natural boundary conditions

```
g = dolfinx.fem.Constant(mesh, dolfinx.default_scalar_type((0, 0)))
```

## Variational form#

We can now define the variational formulation

```
f = dolfinx.fem.Constant(mesh, dolfinx.default_scalar_type((0, 0)))
F = ufl.inner(ufl.grad(u), ufl.grad(v)) * ufl.dx
F += ufl.inner(p, ufl.div(v)) * ufl.dx
F += ufl.inner(ufl.div(u), q) * ufl.dx
F -= ufl.inner(f, v) * ufl.dx
```

We can do as previosly, and split this into a bi-linear and linear form with

```
a, L = ufl.system(F)
```

## Locating a subset of entities on a boundary#

We now want to apply a Dirichlet condition on the degrees of freedom on some subset of the boundary.
We start by locating some sub-set of facets on the boundary, by use `dolfinx.mesh.locate_entities_boundary`

.
Let’s say we want to prescibe the conditions:

We would have to locate what degrees of freedom that are in the closure of this boundary.
Previously, we used `dolfinx.mesh.exterior_facet_indices`

to locate all the facets on the boundary.
However, in this case, we only want to find a subset of facets on the boundary.
We therefore use `dolfinx.mesh.locate_entities_boundary`

:

Define a function

`boundary_marker`

that takes in a set of coordinates`x`

on the form`(3, num_points)`

and returns an array of length`num_points`

indcating if the point is on the boundary. For instance, for the case \(u(0, y) = (ux, uy)\), we would have

```
def boundary_marker(x):
return np.isclose(x[0], 0.0)
mesh.topology.create_connectivity(mesh.topology.dim - 1, mesh.topology.dim)
left_facets = dolfinx.mesh.locate_entities_boundary(mesh, mesh.topology.dim - 1, boundary_marker)
```

```
left_facets=array([ 73, 76, 91, 103, 112, 118], dtype=int32)
```

What points are sent into locate entitites boundary?

The function checks that all vertices of a given entity satisfies the input constraint.

Whenever we have a union of constraints, we can use the `numpy`

bit operations `&`

(and) and `|`

(or) to combine the constraints.

Create a boundary marker for the top and bottom boundary and locate the facets on those boundaries

We can use `numpy.isclose`

for each of the cases, and combine them with `numpy.bitwise_or`

or `|`

Expand the below to see the solution

```
def top_bottom_marker(x):
return np.isclose(x[1], 1.0) | np.isclose(x[1], 0.0)
tb_facets = dolfinx.mesh.locate_entities_boundary(mesh, mesh.topology.dim - 1, top_bottom_marker)
```

For completeness, we find the remaining facets on the boundary

```
all_boundary_facets = dolfinx.mesh.exterior_facet_indices(mesh.topology)
remaining_facets = np.setdiff1d(all_boundary_facets, np.union1d(tb_facets, left_facets))
```

## Dirichlet conditions in mixed spaces#

Now that we have found the boundaries of interest, we can create the Dirichlet conditions
We start by considering what we have already seen:
In the previous sections, Dirichlet conditions have been applied as input to
`dolfinx.fem.dirichletbc`

in the following way:

A function \(w_D\in W\) from the space that contains the Dirichlet condition values

A list of the dofs in the space \(W\) that should be constrained

However, what happens if we use this strategy on a mixed space?
As `w_D`

is a mixed function, we have both pressure and velocity components in this space.
Thus, if we set all entries in the BC to a constant value, we would set **both** the pressure and velocity to the same value.
We illustrate this below

```
w_D = dolfinx.fem.Function(W)
w_D.x.array[:] = 0.43
wh = dolfinx.fem.Function(W)
dofs = dolfinx.fem.locate_dofs_topological(W, mesh.topology.dim - 1, tb_facets)
bc = dolfinx.fem.dirichletbc(w_D, dofs)
bc.set(wh.x.array)
wh.x.scatter_forward()
```

## Show code cell source

```
import pyvista
import os, sys
if sys.platform == "linux" and (os.getenv("CI") or pyvista.OFF_SCREEN):
pyvista.start_xvfb(0.05)
def visualize_mixed(mixed_function: dolfinx.fem.Function, scale=1.0):
u_c = mixed_function.sub(0).collapse()
p_c = mixed_function.sub(1).collapse()
u_grid = pyvista.UnstructuredGrid(*dolfinx.plot.vtk_mesh(u_c.function_space))
# Pad u to be 3D
gdim = u_c.function_space.mesh.geometry.dim
assert len(u_c) == gdim
u_values = np.zeros((len(u_c.x.array) // gdim, 3), dtype=np.float64)
u_values[:, :gdim] = u_c.x.array.real.reshape((-1, gdim))
# Create a point cloud of glyphs
u_grid["u"] = u_values
glyphs = u_grid.glyph(orient="u", factor=scale)
pyvista.set_jupyter_backend("static")
plotter = pyvista.Plotter()
plotter.add_mesh(u_grid, show_edges=False, show_scalar_bar=False)
plotter.add_mesh(glyphs)
plotter.view_xy()
plotter.show()
p_grid = pyvista.UnstructuredGrid(*dolfinx.plot.vtk_mesh(p_c.function_space))
p_grid.point_data["p"] = p_c.x.array
plotter_p = pyvista.Plotter()
plotter_p.add_mesh(p_grid, show_edges=False)
plotter_p.view_xy()
plotter_p.show()
pyvista.set_jupyter_backend("html")
```

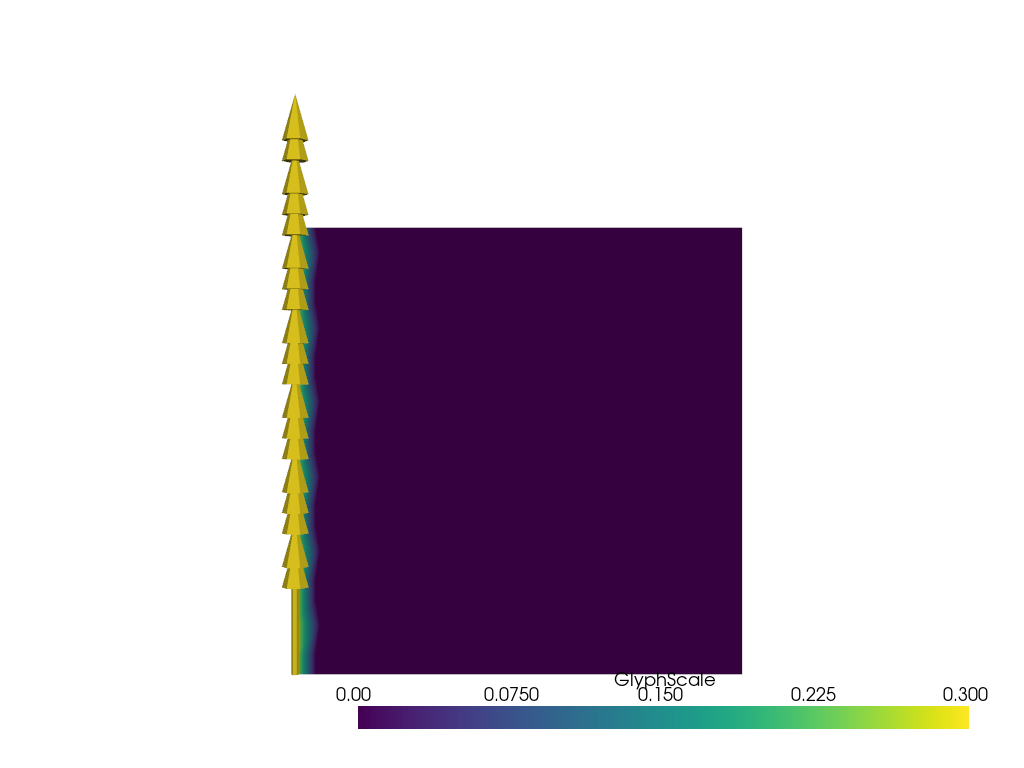

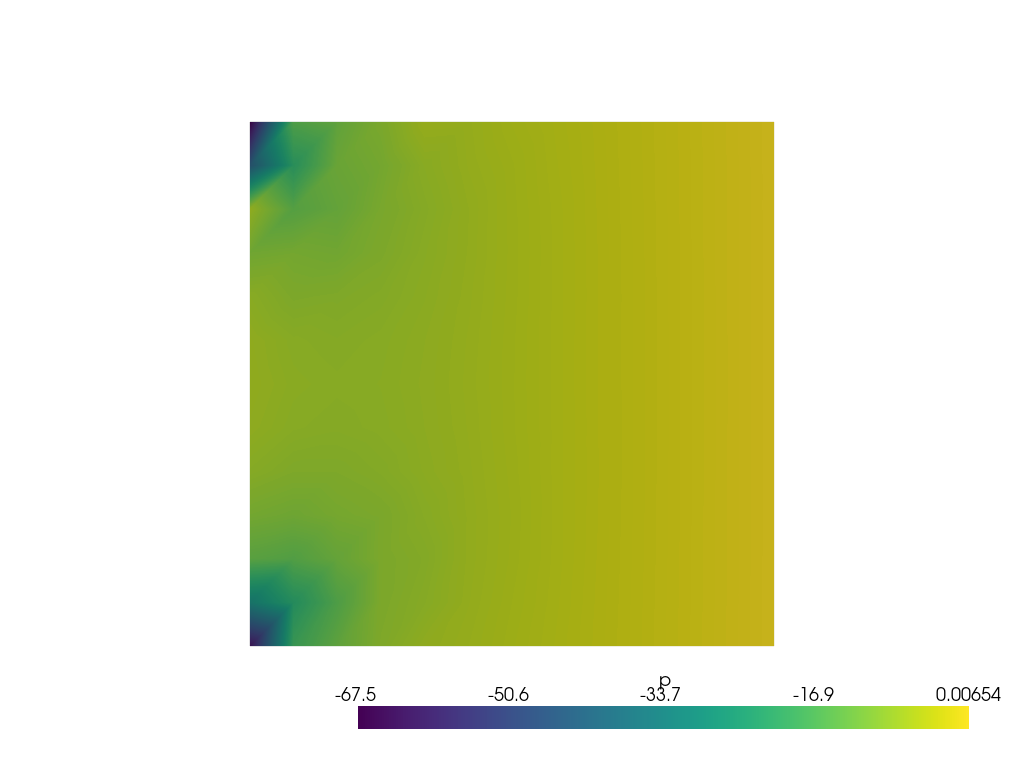

A convenience function for visualizing the velocity and pressure fields is found by expanding the cell below

## Show code cell source

```
visualize_mixed(wh)
```

What we want to do instead is to only apply the boundary condition to the velocity sub-space. We do this by first getting a function in the sub-space of the velocity field:

```
W0 = W.sub(0)
V, V_to_W0 = W0.collapse()
```

What is the difference between W0 and V?

Whey you call the sub-command on a dolfinx function space (or function), you get a view into the sub-space,
i.e. you will get a dofmap that only contains the degrees of freedom that are in the sub-space.
However, the global dof numbering is still preserved, meaning that a dof in the sub-space will have
the same index as in the global space.
It also means that a function accessed through `u.sub(i)`

will contain all the degrees of freedom in the global space.
We use `W0.collapse()`

to get a self contained function space of only the degrees of freedom in the sub-space.
We also get back a map frome each degree of freedom in the sub space to the degree of freedom in the parent space.
This can be super-useful when we want to assign data from collapsed sub spaces to the parent space!

With the collapsed function space, we can create a function in the sub-space of the velocity field

```
u_D = dolfinx.fem.Function(V)
u_D.x.array[:] = 0.11
```

Next, we want to fund the dofs of the collapsed sub space, and map them to the parent space

```
sub_dofs = dolfinx.fem.locate_dofs_topological(V, mesh.topology.dim - 1, tb_facets)
```

However, these dofs are in a blocked (vector space) and one would have to expand them for block size

```
unrolled_sub_dofs = np.empty(len(sub_dofs) * V.dofmap.bs, dtype=np.int32)
for i, dof in enumerate(sub_dofs):
for j in range(V.dofmap.bs):
unrolled_sub_dofs[i * V.dofmap.bs + j] = dof * V.dofmap.bs + j
```

We can now map them to the parent space

```
parent_dofs = np.asarray(V_to_W0)[unrolled_sub_dofs]
```

We could also do this as a one-liner with

```
combined_dofs = dolfinx.fem.locate_dofs_topological((W0, V), mesh.topology.dim - 1, tb_facets)
```

Let us create a Dirichlet condition with these degrees of freedom.
We now pass in the prescribing function `u_D`

first, then the tuple of `(parent_dofs, sub_dofs)`

.
As a final argument, we tell the Dirichlet condition what space we are working with, in this case `W0`

```
new_bc = dolfinx.fem.dirichletbc(u_D, combined_dofs, W0)
new_wh = dolfinx.fem.Function(W)
new_bc.set(new_wh.x.array)
new_wh.x.scatter_forward()
```

Sub-spaces of sub spaces

As we in some cases only want to constrain one of the components of the vector space, say \(\mathbf{u}=(u_x, u_y)\), \(u_y=h(x,y)\), while \(u_x\)
is unconstrained. We can do this by repeating the strategy above, but with `W.sub(0).sub(1)`

and its corresponding collapsed space.

We can of course do the same for the pressure conditions, by collapsing the second sub-space.

For the cases above \((u_x, u_y)\) where constant in both directions, thus you might wonder why we did just send in a constant value. This was simply done for illustrative purposes. We will illustrate the final way of applying a Dirichlet condition

```
uy_D = dolfinx.fem.Constant(mesh, dolfinx.default_scalar_type(0.3))
sub_dofs = dolfinx.fem.locate_dofs_topological(W.sub(0).sub(1), mesh.topology.dim - 1, left_facets)
bc_constant = dolfinx.fem.dirichletbc(uy_D, sub_dofs, W.sub(0).sub(1))
```

Note that this looks quite similar to how we sent in collapsed sub functions.
However, we do no longer require a map from the the collapsed space (reflected in the input to `locate_dofs_topological`

).

Warning

Dirichlet boundary conditions on sub-spaces with a block size In DOLFINx, we can not use the above syntax for a vector constant that is applied to W.sub(0). One can either constrain each component with a constant individually, or use a function as shown previously.

## Show code cell source

```
newer_wh = dolfinx.fem.Function(W)
bc_constant.set(newer_wh.x.array)
newer_wh.x.scatter_forward()
visualize_mixed(newer_wh)
```

For the following exercise, we set `ux=1`

, `uy=0`

and \(\mathbf{g}=\mathbf{f}=0\).

Solve the Stokes problem on the unit square

As the Stokes problem is linear, we can set up a solver similar to Solving the linear system with scipy.

Expand the below cell to see the solution

## Show code cell source

```
W0 = W.sub(0)
V, V_to_W0 = W0.collapse()
u_inlet_x = dolfinx.fem.Constant(mesh, dolfinx.default_scalar_type(1))
u_inlet_y = dolfinx.fem.Constant(mesh, dolfinx.default_scalar_type(0))
dofs_inlet_x = dolfinx.fem.locate_dofs_topological(W.sub(0).sub(0), mesh.topology.dim - 1, left_facets)
dofs_inlet_y = dolfinx.fem.locate_dofs_topological(W.sub(0).sub(1), mesh.topology.dim - 1, left_facets)
bc_inlet_x = dolfinx.fem.dirichletbc(u_inlet_x, dofs_inlet_x, W.sub(0).sub(0))
bc_inlet_y = dolfinx.fem.dirichletbc(u_inlet_y, dofs_inlet_y, W.sub(0).sub(1))
u_wall = dolfinx.fem.Function(V)
u_wall.x.array[:] = 0
dofs_wall = dolfinx.fem.locate_dofs_topological((W0, V), mesh.topology.dim - 1, tb_facets)
bc_wall = dolfinx.fem.dirichletbc(u_wall, dofs_wall, W0)
a_compiled = dolfinx.fem.form(a)
L_compiled = dolfinx.fem.form(L)
A = dolfinx.fem.create_matrix(a_compiled)
b = dolfinx.fem.create_vector(L_compiled)
A_scipy = A.to_scipy()
bcs = [bc_inlet_x, bc_inlet_y, bc_wall]
dolfinx.fem.assemble_matrix(A, a_compiled, bcs=bcs)
dolfinx.fem.assemble_vector(b.array, L_compiled)
dolfinx.fem.apply_lifting(b.array, [a_compiled], [bcs])
b.scatter_reverse(dolfinx.la.InsertMode.add)
[bc.set(b.array) for bc in bcs]
import scipy.sparse
A_inv = scipy.sparse.linalg.splu(A_scipy)
wh = dolfinx.fem.Function(W)
wh.x.array[:] = A_inv.solve(b.array)
visualize_mixed(wh, scale=0.1)
```

A matrix block system

We notice that we can write this system as a block matrix system

```
```
